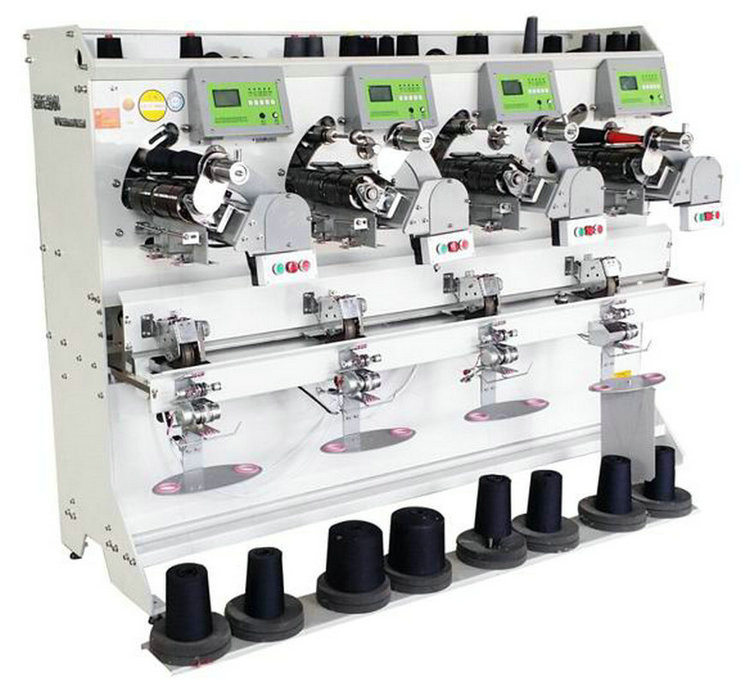

Cheap rope winder price rope winding machine for cone rewinder

Machine Application:

     TS008O High speed sewing thread winding machine is applicable for winding sewing thread , embroidery thread , nylon thread ,etc. This machine features availability of computer-based separate control of each single spindle , a frequency –change slotted spool yarn guide device , an electro-magnetic tension force control system , a pump-based cycling –type oiling device , etc. characteristics of a good shape formation , high efficiency , easy operation , assured safety and reliability and broad applicability , etc..

Computer yarn-length measurement.

1. Yarn length measured by computer, accuracy +1%.

2. Yarn speed adjustable, which from 400 to 1,000 meter/per minute. Drum thread-guidance system 1. High speed, low noise drum.2. Drum with special hardened polish treatment, smooth & wear resist.

Automatic lubrications system.

1. Threads are being uniform lubricate, thanks to the constant yarn speed, the oiling roller speed is adjustable.

2. Release the tension from beginning to the end; it makes the winded package good appearances

3. LED display easy operation.

Circulating oil device.

1. Keep always the full level of oil to each spindle.

2. Big-scale return oil trough and oil fender to filter without pollution and oil waste.

3. One oil filter is devoiced for every oil wheel to reduce the oil slinging out.

4. One oil tank can supply for the use of 24 spindles.

5. Detachable filter, easy to clean.

Specification:
